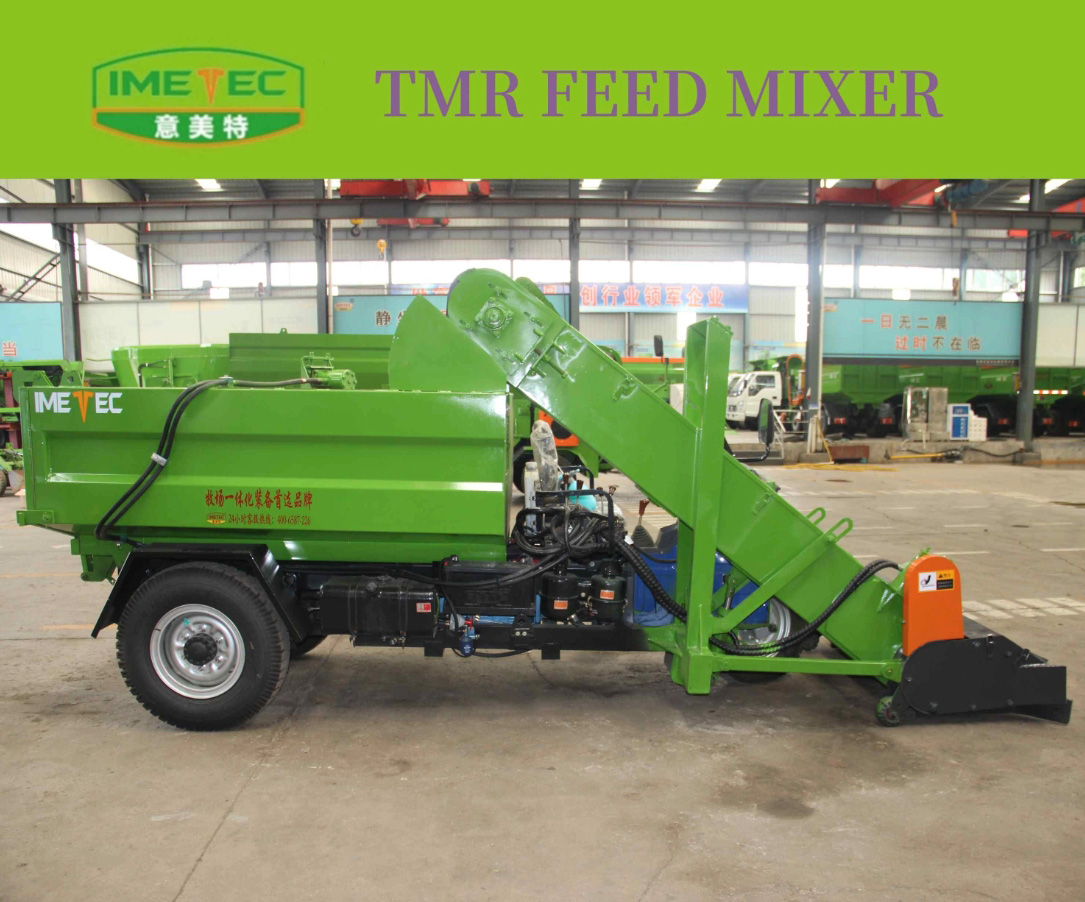

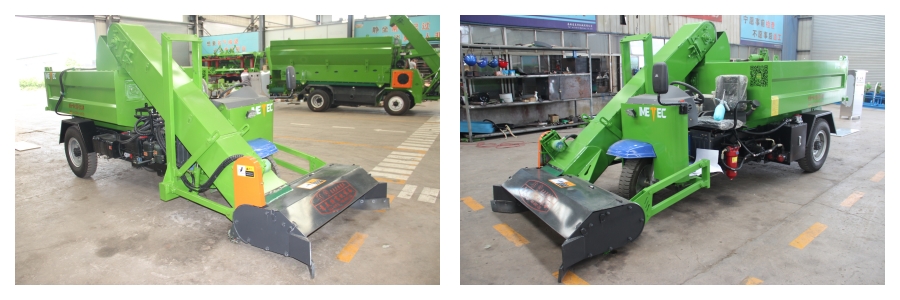

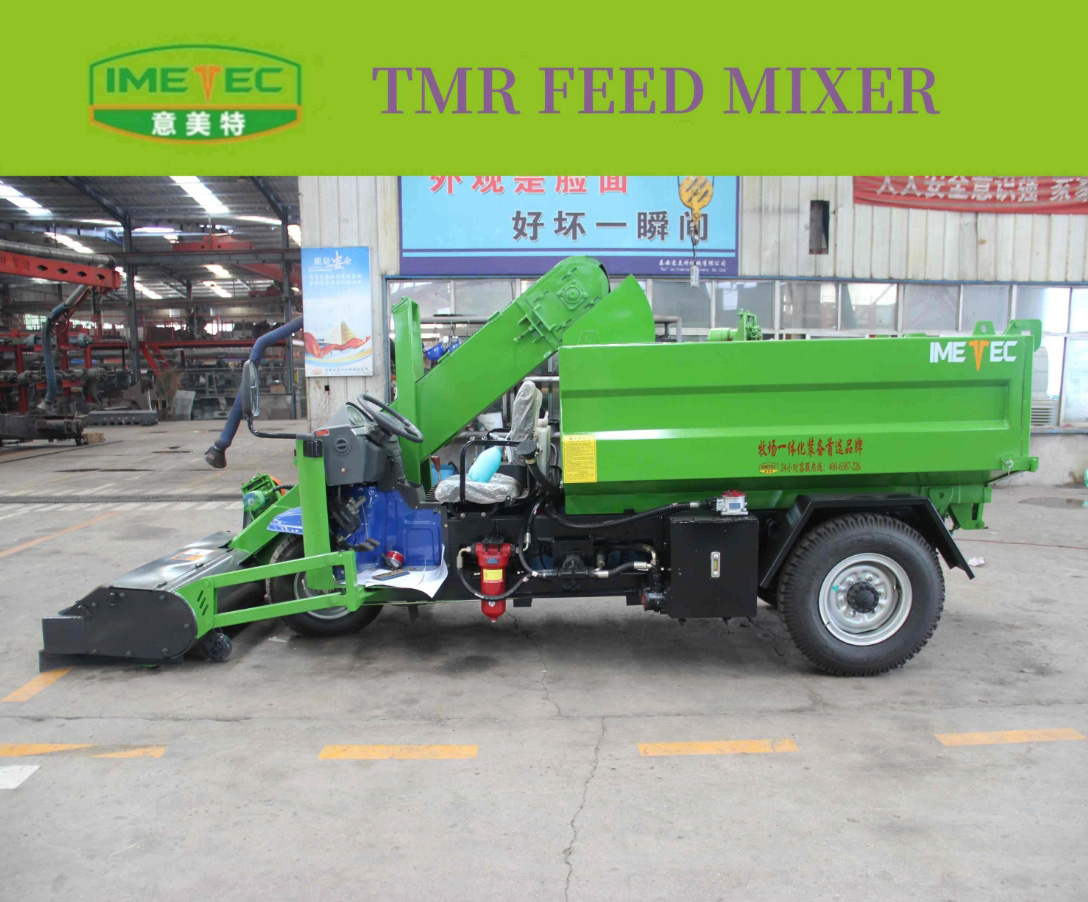

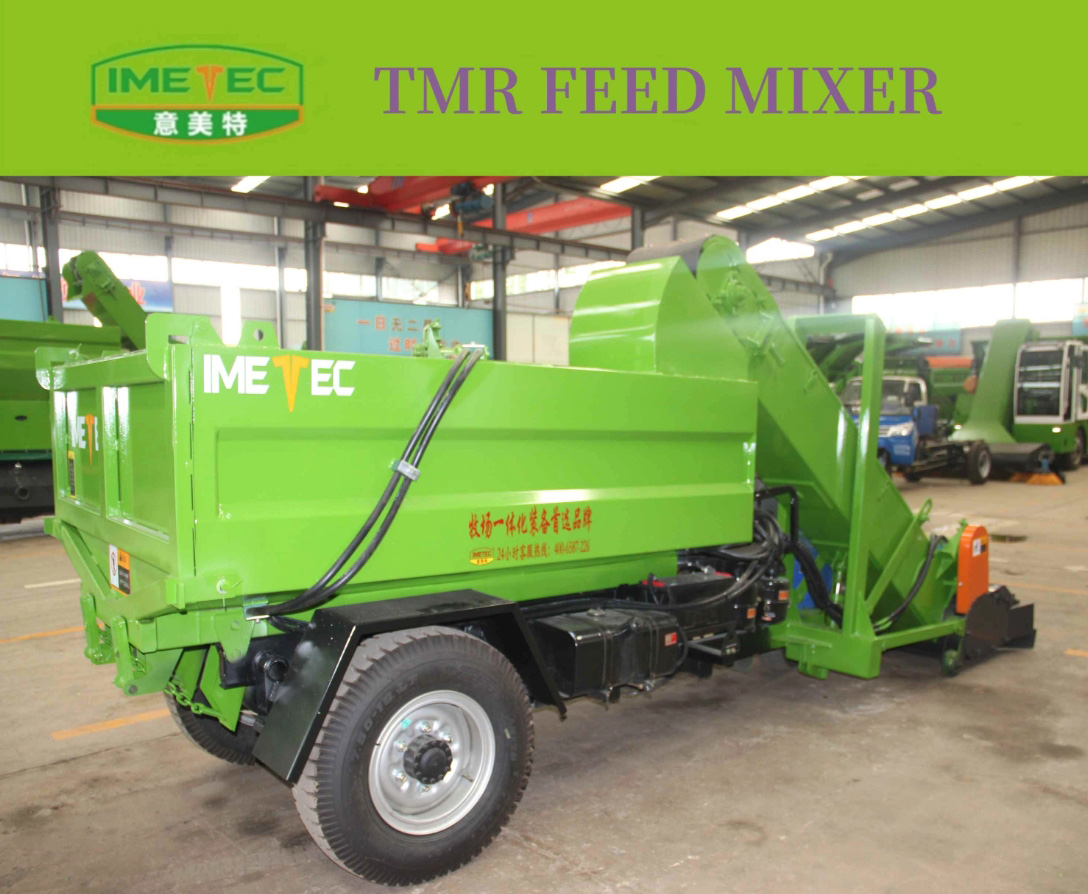

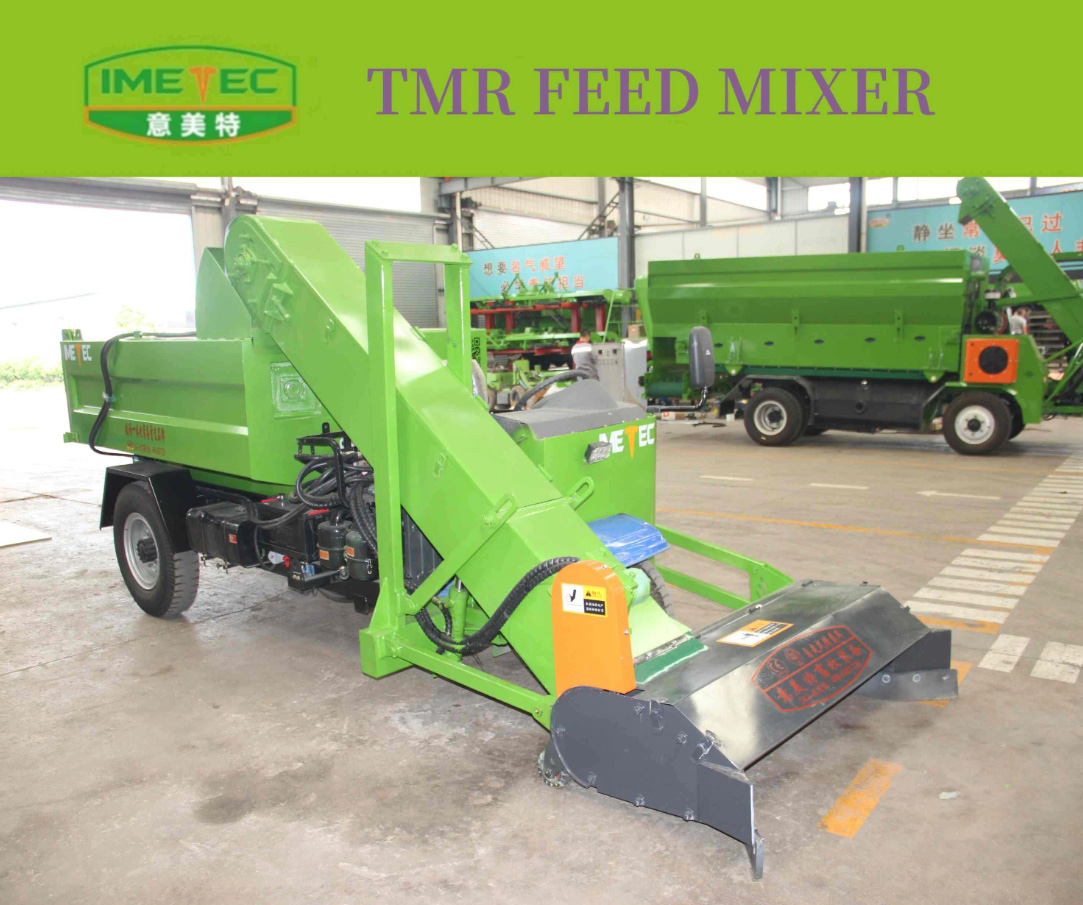

2CBM Morden Manure Harvester
Self Propelled Three Wheel Cow Dung Cleaning Machine
The three wheel manure harvester is mainly used for removing cattle and sheep manure on small farms. It is driven by a three-wheeled tricycle and can travel through a narrow channel, such as 1.5 meters. Then quickly and efficiently clears manure and water from the ground and transports it to its intended location, keeping the floor clean, preventing secondary contamination and reducing livestock hoof diseases.
Product Overview:
This manure harvester uses a tricycle as its base power and is specially designed for cleaning manure in cow cramped or small farms.
Performance characteristics:
1. The use of special high-strength chains is more durable and reduces maintenance costs.
2. The perfect combination of auger and auxiliary material discharge device can effectively increase the feeding speed.
3. Special engine and special gearbox are more durable and have a low failure rate.
4. Highly efficient, labor-saving integrated automatic manure cleaning machine for livestock farms can be self-loading and self-unloading. One person can complete it by himself.
5. Three-wheel base and easy turning.
Product Parameters
| Item | respression |
| Model | 9QF-2 |
| Size L*W*H(mm) | 4100*1400*2100 mm |
| Material | Q355B steel |
| Engine | TYPE-145D98 |
| Power | 22hp 16.2KW |
| Path on foot | Hydraulic control |
| Collection system | Combining the auger and scraper and lifting the chain transmission |
| Unloading system | Hydraulic jacks, automatic unloading without physical contact |
| Gear | Continuously variable transmission |
| Tire number | 3 pieces |
| Chassis | Independent work |
Comparison before and after using this product
