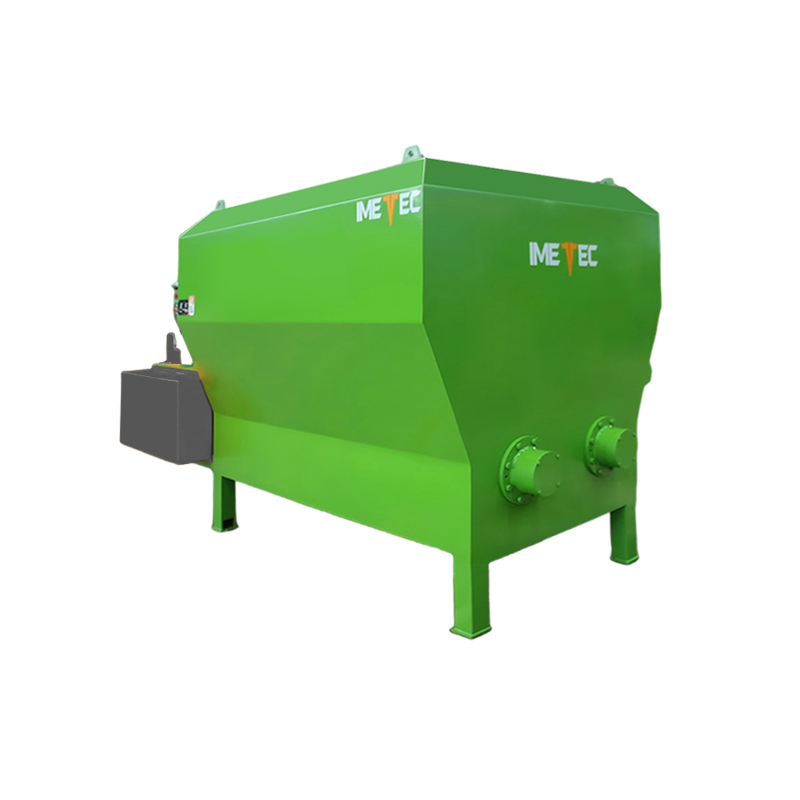

Horizontal feed mixer 5 m³
Product Features:
1. Special treatment of the discharge blade mixer, the angle can be replaced for reuse, making it more cost-effective
2. Patented through-shaft main mixer gear design, faster cutting, more uniform mixing
3. Blade thickness: manganese steel 12 mm, box thickness: 6 mm, base plate 10 mm (customizable)
4. Stainless steel distribution cabinet, Delisi or Chint electrical components
5. Unique design ensures more uniform mixing, especially for sheep, beef cattle, donkeys, deer, and other herbivores, providing the most palatable total mixed ration
6. Can be customized according to the customer's pasture size, and can also be equipped with weighing and easy maintenance features
7. Double ball special adjustable bearing seat, stronger bearing load capacity
8. R series hardened surface gear direct connection or split weight type reducer
Product Introduction:
The TMR total mixed ration mixer is meticulously designed by Tai'an Yimet Machinery Co., Ltd. with years of experience. According to the appearance and shape of the product, it can be divided into two types: vertical and horizontal, among which the vertical type is divided into stationary and towable types; and the horizontal type is divided into stationary and self-propelled types. Ranch friends can choose the appropriate type according to their needs.
Features of the horizontal mixer:
The whole mixed ration horizontal mixer is mainly powered by electricity, with a shovel and a spreader to complete the feeding operation, saving energy and being fast.
The most important feature of the entire mixed ration horizontal mixer is: mainly powered by electricity, with a shovel and spreader to complete the feeding operation, saving energy, fast, economical and practical, cost-effective, with advantages such as mixing uniformity, unique grinding function, fully suitable for dairy cows, beef cattle, meat goats, dairy goats, and herbivorous feed processing requirements. Hay and all kinds of straw can be directly processed to 200 mm or less without pretreatment, comprehensively improving the feed workshop. Comprehensively improve the level of production management and production efficiency, reduce the labor intensity of workers, and comprehensively enhance the comprehensive utilization rate of feed.
Total mixed ration, the feed mixing method uses an AC motor drive, a twin-screw reducer, with plum-shaped and round blades installed on the blade for cutting all types of hay, low noise, less pollution. The output speed of the reducer is 23-29 rpm. On the side of the center of the box is a discharge device, the discharge door is closed when the fixed mixer is mixing, and the discharge door opens to unload the material after the feed is well mixed. The rear side of the stationary mixer is equipped with a loading device (can be customized), controlled by a hydraulic system.
