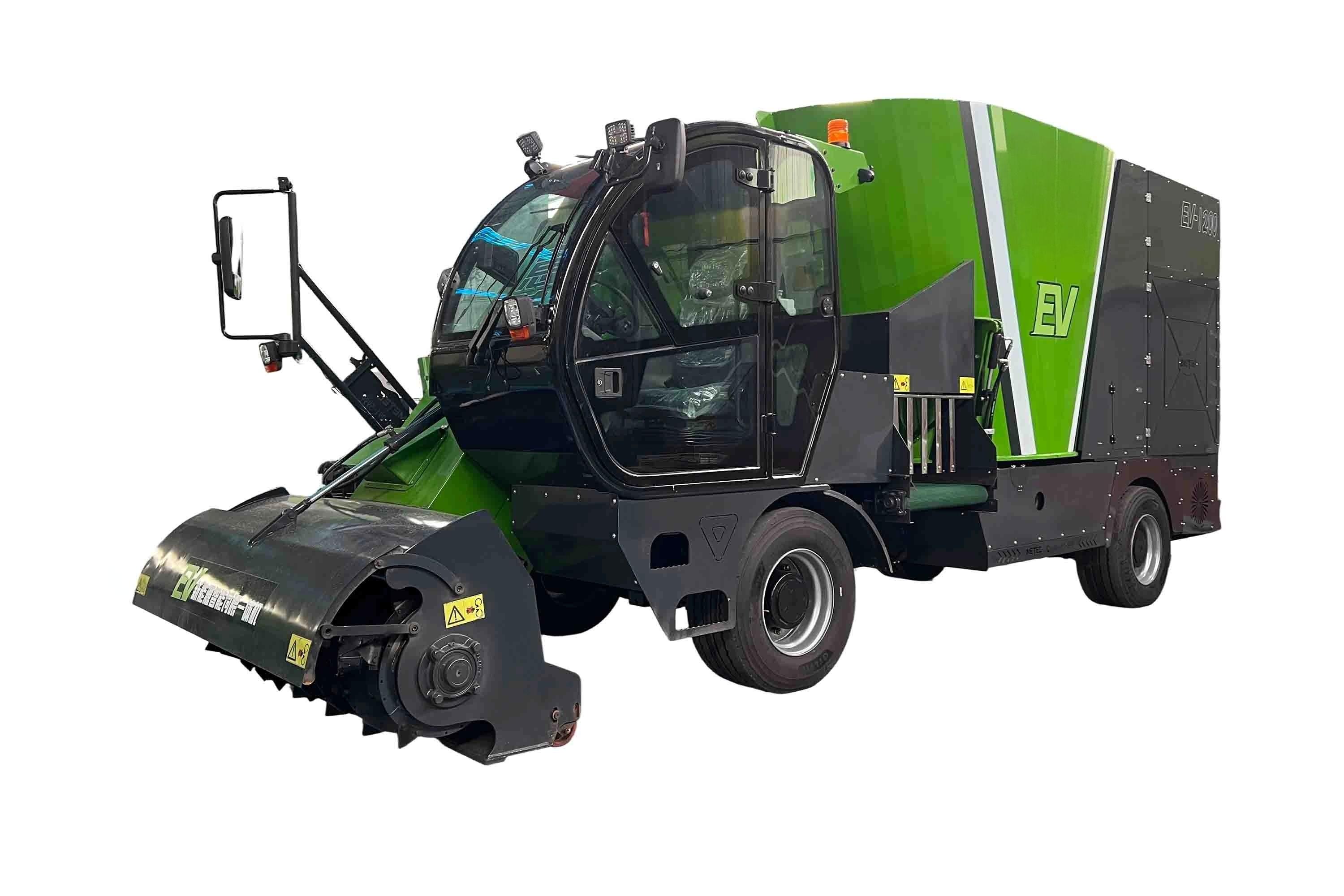

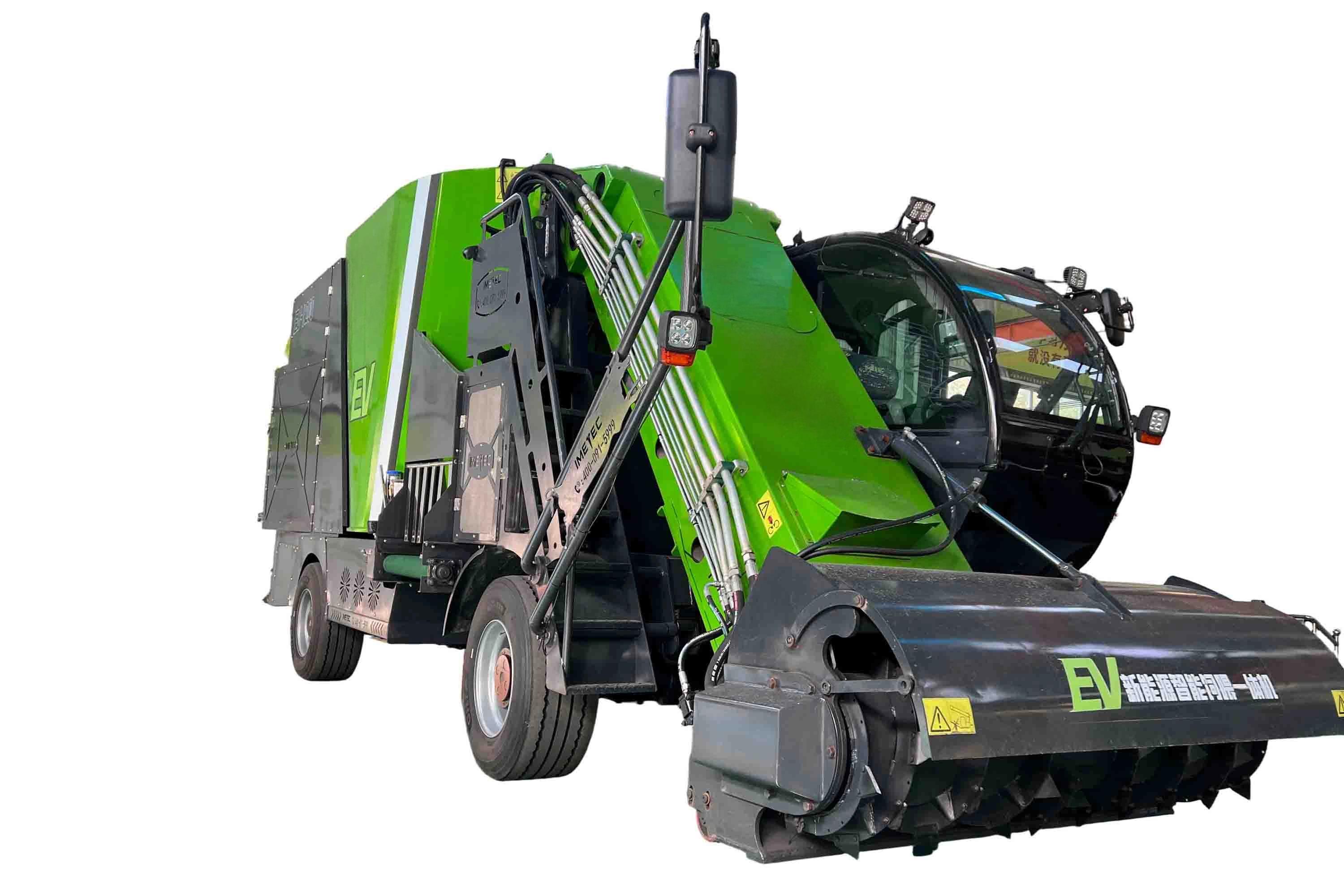

Electric Self-Propelled Mixer-Feeder
Electric Self-Propelled Mixer-Feeder
1. This is a fully electric machine for preparing a complete mixed diet, specifically designed for farms aiming for environmental friendliness, low carbon emissions, cost savings, and increased efficiency. It completely replaces traditional towed trailer-type equipment and stationary feed dosing and distribution equipment — for large farms with a herd of 10,000 head, only four units are needed to perform all feeding work.
2. Environmental friendliness, low emissions, and continuous cost savings: The equipment uses a fully electric drive system that is environmentally friendly, energy-saving, produces no emissions, and has low noise levels. It is equipped with battery packs from CATL, ensuring safety and reliability, and further reduces feed processing costs to less than 2 yuan per unit.
3. Intelligent integration, simplicity, and high efficiency: the real-time monitoring system integrates the latest scientific developments, supports remote control and intelligent scheduling functions. It optimizes feeding plans, reduces manual labor, and moves closer to achieving unmanned operation.
4. Cloud connectivity for full control: the intelligent feeding management system records all processes in real time—both feed addition and distribution—including the ability to monitor the amount of feed distributed to each animal compartment at any time. Cloud-based feed recipes maintain constant communication with the mixer, ensuring interconnection between humans, equipment, and objects (animals).
PowerUnit |
Number of batteries |
4 |
One battery unit kWh |
77.6 | |
Total battery capacity in kWh |
310 | |
Drive configuration |
Hydraulic |
|
Total travel speed |
3–30 km/h |
|
Control method |
Front steering |
|
Axle model |
YMT2510 |
|
Control method |
Front steering |
Agitation section |
Number of screws |
1 |
Screw mixer drive |
Electric motor |
|
Engine power |
37 km | |
Number of blades |
6 |
MaterialsSearchSection |
Material and thickness of the feed roller |
Stainless steel/3 mm |
Blade thickness |
5mm | |
Feed roller rotation speed |
160–240 rpm |
|
Material collection height |
4m | |
Feeding method |
Belt (with fixing plate) |
Hydraulic components |
Hydraulic motor power |
105km |
Engine |
Hydraulic |
Weighing Section |
Weighing accuracy |
1/3000 |
Degree of protection against ingress |
IP67 | |
Number of sensors |
3 | |
Maximum sensor range |
15T |
Full set of equipment |
Oil injection |
Fully automatic |
Dimensions |
7400*2500*3200mm |
