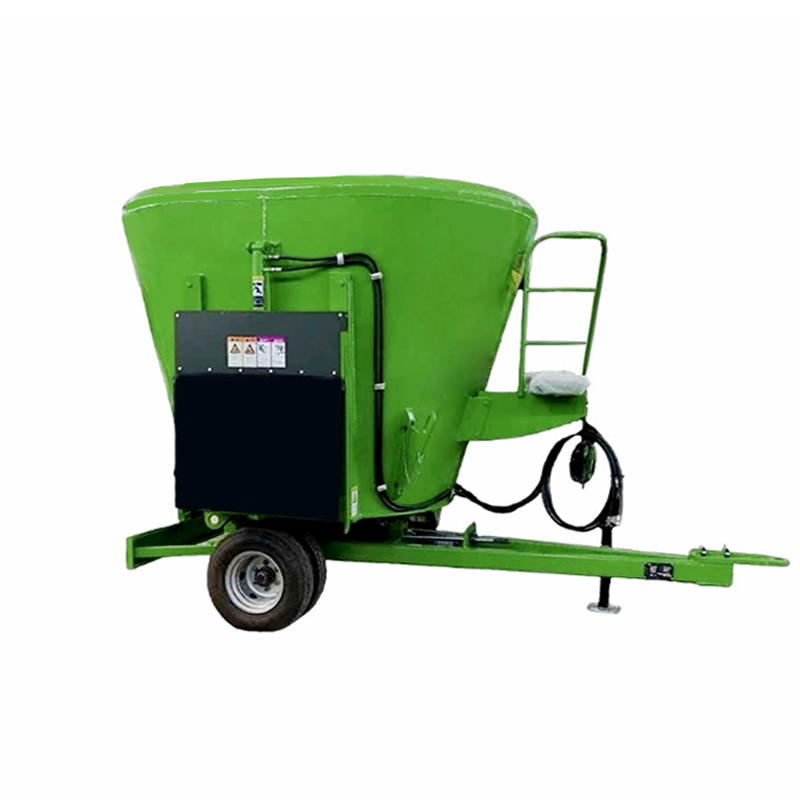

Vertical feed mixer 24CBM

24CBM TMR feed mixer is mainly used for cow feeding and can mix feed evenly and quickly. Using the motor as the power source, this machine is energy-saving and environmentally friendly. She can feed 1000 cows at a time.

The main feature of TMR mixer cars:

1. Imported weighing system, heavy duty gearbox

2. Jiangling gearbox, auger and box material can also be customized.

3. One button material throwing, variable trigger frequency

4. The whole box has no splice

5. Was included in the national catalog of agricultural machinery subsidies

6. Double screw

Contact Now E-Mail Telephone WhatsApp

Product Details

Product Features:

24CBM TMR mixer wagons are used for farms with more than 1000 cows.

1. The TMR static feed mixer wagon is driven by two motors, saving energy and labor costs.

2. Through mechanical transmission, the power is transmitted to the gearbox under the auger of the equipment, and the auger gearbox will drive the auger.

3. After mixing and mixing the materials, they are transported to the barn for feeding and spreading by the feed dispenser.

4. Special anti-leakage design, obviously more durable.

5. Independent control of R series double reduction system is more energy efficient.

6. One-button starting frequency adjustable, material throwing, star starting can effectively reduce the damage to electrical components.

7. One-button material ejection function allows you to quickly and thoroughly remove the material in the tank.

8. The thickened bottom plate and specially treated tank body with resistance grooves are more wear-resistant.

9. The whole blade of the machine is coated with alloy steel with tungsten carbide for 1500-2000 hours.

10. The auger/hopper is welded into one piece, alloy wear-resistant protected edge can extend the service life of the auger.

Vertical feed mixer 24CBM

Options

Applicable industries	Feeding cows or cattle on farms General mixed ration feeding
Place of origin	Tai'an, Shandong, China
Key selling points	Labor saving, energy saving
Warranty for main components	1 year
State	New
Brand name	IMETEC
Type	Feed Mixing Machine
Name	TMR feed mixer car
Model	9JGL-24/2
Gearbox brand	Brand Jiangling
Main engine brand	Aotou brand in Shanghai
Matched power	75+1.5KW
Door opener motor power	1.5kw
Auger number	2 pieces
Auger model	Vertical
Knife material	coated tungsten carbide
Control unit electrical parts Brand	Delix
