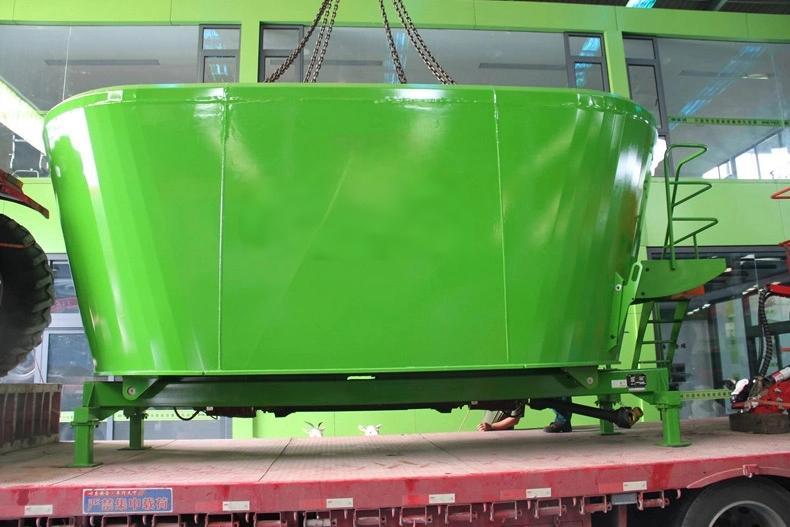

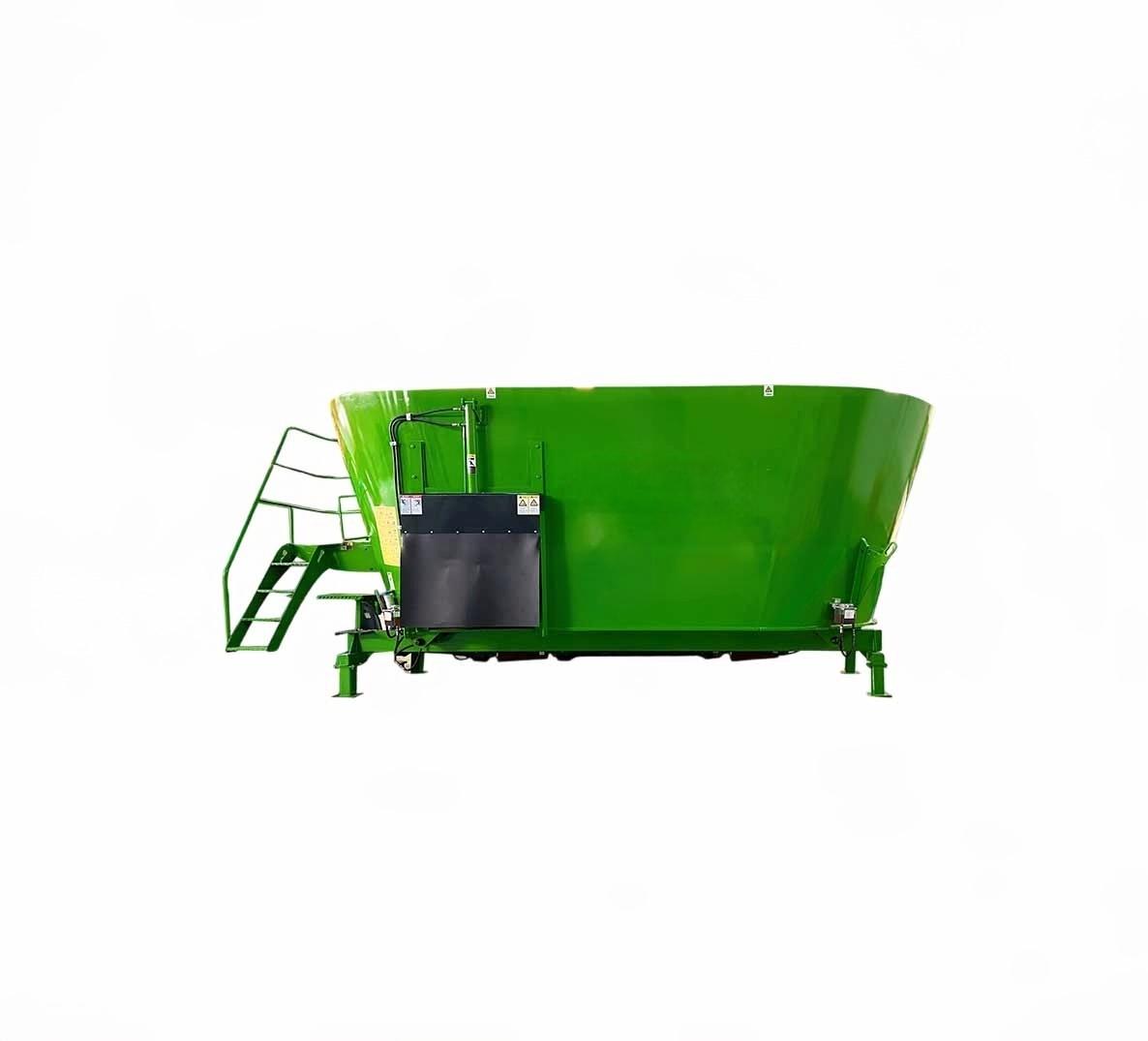

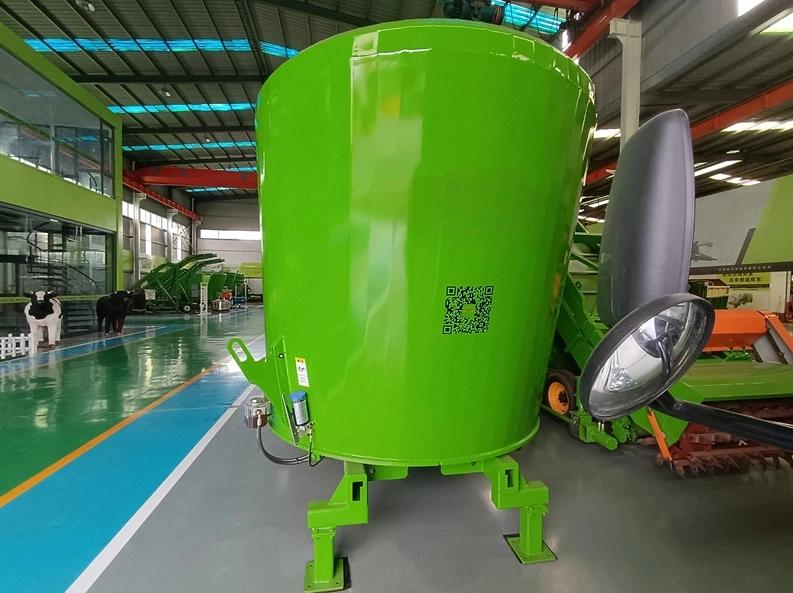

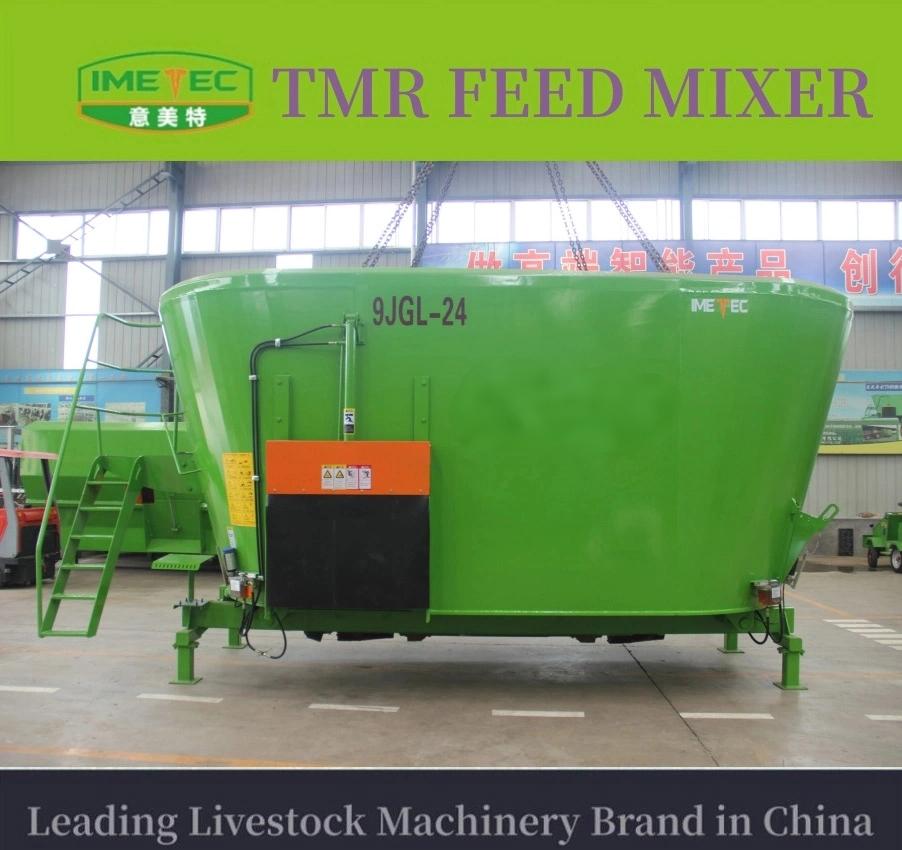

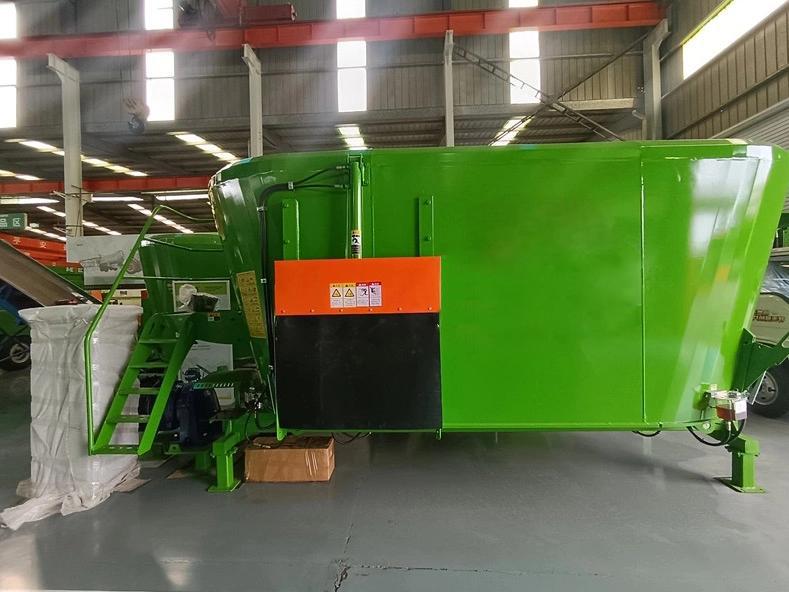

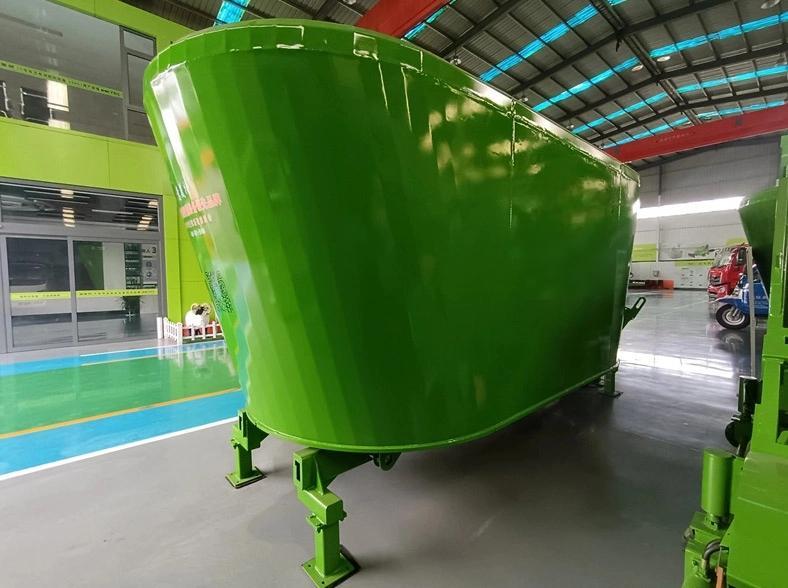

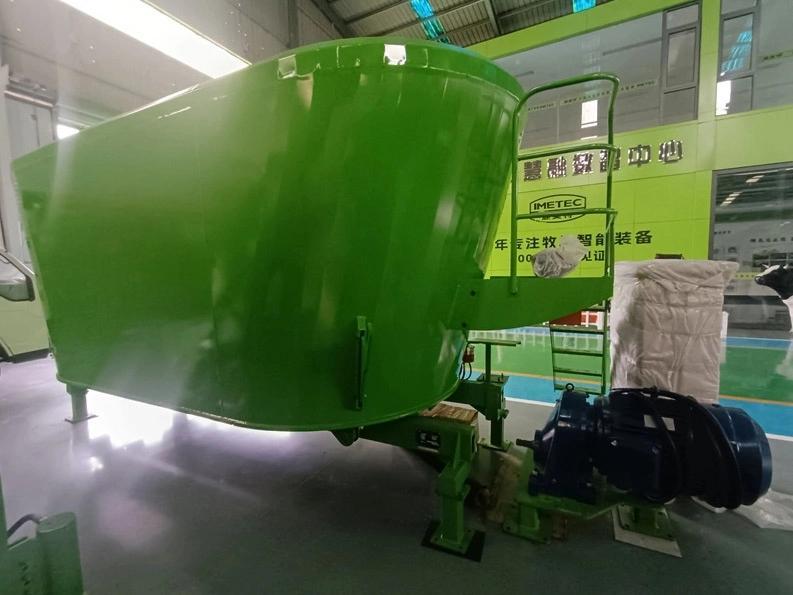

Vertical feed mixer
The 24CBM TMR feed mixer is mainly used for feeding cows and can mix the feed evenly and quickly. Using the motor as the power source, this machine is energy-saving and environmentally friendly. It can feed 1000 cows at a time.
The main feature of TMR mixer wagons:
1. Imported weighing system, heavy-duty reducer
2. Jiangling reducer, screw and box material can also be customized.
3. One button material throwing, variable trigger frequency
4. The whole box has no splicing
5. Was included in the national catalog of subsidies for agricultural machinery
6. Double auger
Product Features:
The 24CBM TMR mixer wagons are used for farms with more than 1000 cows.
1. The TMR static feed mixer wagon is driven by two motors, which saves energy and labor.
2. Through the mechanical transmission, the power is transmitted to the gearbox under the auger of the equipment, and the auger gearbox will drive the auger.
3. After mixing and stirring the materials, they are transported to the barn for feeding and spreading by the feed dispenser.
4. Special anti-leakage design, obviously more durable.
5. Independent control of R series double reduction system is more energy efficient.
6. One-button adjustable starting frequency, material throw, star starting can effectively reduce the damage to electrical components.
7. One-button material ejection function allows you to quickly and thoroughly remove the material in the tank.
8. Thickened bottom plate and specially treated tank body with resistance grooves are more wear-resistant.
9. The whole blade of the machine is coated with alloy steel with tungsten carbide for 1500-2000 hours.
10. Auger/hopper is welded into one piece, alloy wear-resistant protected edge can extend the service life of auger.
Options
Applicable industries |
Feeding cows or cattle on farms General feeding with mixed ration |
Place of origin |
Tai'an, Shandong, China |
Key selling points |
Saving labor, saving energy |
Warranty for main components |
1 year |
State |
New |
Brand name |
IMETEC |
Type |
Feed Mixing Machine |
Name |
TMR feed mixer wagon |
Model |
9JJL-24/A |
Gearbox brand |
Brand Jiangling |
Main engine brand |
aotou brand in shanghai |
Agreed power |
75+1.5KW |
Door opening motor power |
1.5kw |
Auger number |
2 pieces |
Screw model |
Vertical |
Knife material |
coated tungsten carbide |
Control unit electrical parts Brand |
Deluxe |
